دستگاه فرز فلز بر Okuma MCR-A5C30x65

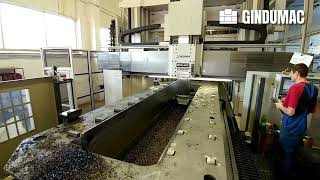

This Okuma MCR-A5C30x65 gantry milling machine was manufactured in 2013. It features a robust 100 mm spindle, capable of speeds up to 4000 min⁻¹, and accommodates a maximum workpiece size of 2540 mm by 5540 mm. The machine supports a hefty 30,000 kg on its 2500 × 6300 mm table. Ideal for heavy-duty milling with a rapid feed rate of 20,000 mm/min. Contact us for more information about this machine.
Location: LT
Dimensions of machine (lxwxh): 2500 mm x 6600 mm x 6350 mm / weight (kg): 59000 kg
Max workpiece width: 2540 mm / max workpiece length: 5540 mm
Table size (width × length): 2500 mm × 6300 mm /max load on table: 30000 kg table height from floor: 850 mm /effective width between columns: 3050 mm/ t-slot (width × number): 24h7 × 13
Cutting feed rate: 1 to 10000 mm/min/ rapid feed rate: 20000 mm/min/ table movement x-axis: 6500 mm /x-axis travel: 6500 mm /y-axis travel: 3500 mm/ z-axis travel: 650 mm
Tool holder: bt50 + masz type/ tool storage capacity: 50 tools /max tool length: 300 mm
Power supply: 400v, 3 /phases, 50hz rated capacity: 513 kva /full load current: 741 a /peak current: 117/138 a /short circuit current: 18 ka
Machine Benefits
Technical Machine Benefits
Large table size suitable for heavy loads. /extensive tool storage capacity. /high rapid feed rate for efficient operations
