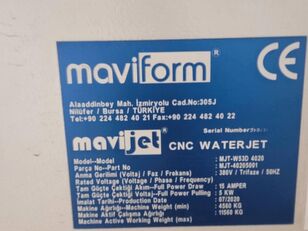

دستگاه برش واترجت MAVIJET MJT-W53D- 4020

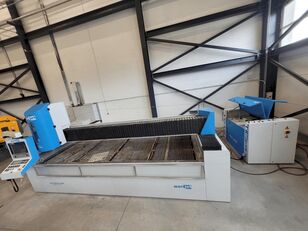

This 5-axis MAVIJET MJT-W53D-4020 was manufactured in 2020, featuring a CNC 5-axis, bridge type design for precision waterjet cutting. It includes a high-pressure pump operating at 4000 bar and a rapid traverse speed of 30000 mm/min. The machine supports a cutting size of 4000 × 2000 × 250 mm and is equipped with a smart abrasive reserve tank. If you are looking to get high-quality cutting capabilities, consider the MAVIJET MJT-W53D-4020 machine we have for sale. Contact us for more information.
Additional equipment

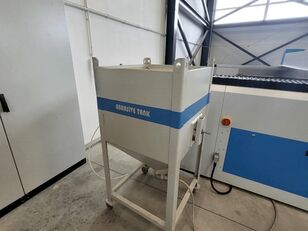

Smart Abrasive Reserve Tank Included
Tank Capacity: 350 kg
Tank Pressure: 6 bar
Sand Dosing System: Adjustable via CNC (flow 50–1000 g/min)
Machine Benefits
Technical Machine Benefits
Axes: 5-axis waterjet cutting machine
Cutting size: 4000 × 2000 × 250 mm
Type: cnc 5-axis, bridge type
Step accuracy: 0. 01 mm
Controller: esa 5-axis controller with ethernet, usb, and manual handwheel (x/y/z)
Cam program: semi-automatic nesting / automatic input-output system
Rapid traverse speed: 30000 mm/min
Extra Information
Condition: Very good technical condition, low number of working hours

Movement
Axis Motors:
X-axis: 1 × 3.2 Nm servo motor
Y-axis: 2 × 3.2 Nm servo motors
Z-axis: 1 × 1.6 Nm servo motor with brake
A-axis: 1 × 1 Nm servo motor with brake
C-axis: 1 × 1 Nm servo motor with brake
Transmission System: Helical hardened racks and pinions
Linear Bearing: THK linear slides and rails
Injection Unit

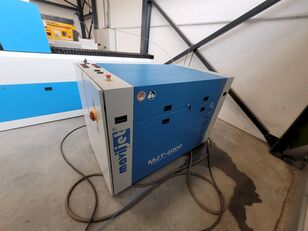

High Pressure Pump: MJT-4000
Operating Pressure: 4000 bar constant (24h non-stop)
Motor: 50 HP / 37 kW, 1500 rpm, 50/60 Hz
High Pressure Flow Rate: 2.3–3 L/min
Pressure Adjustment: 1000–4000 bar in 500 bar steps
Orifice Diameters: 0.18 / 0.25 / 0.30 / 0.35 mm
Hydraulic Pump: 71 cm³ (103 L), axial piston pump max. 200 bar
Cooling Water Flow: 30 L/min
Optimum Water Inflow: 4 bar
Adjustable Pressure Water Pump: 10–16 bar
application type: Cutting
Location: Poland
machine type: Waterjet Cutting Machine
Number of Axes: 5
Marke: MAVIJET
